Infusion/ Administration Set

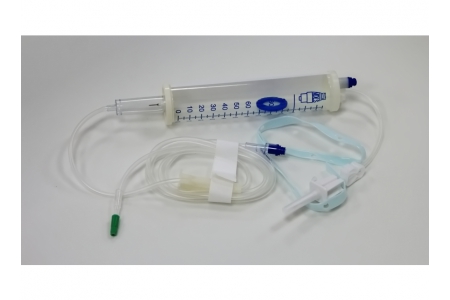

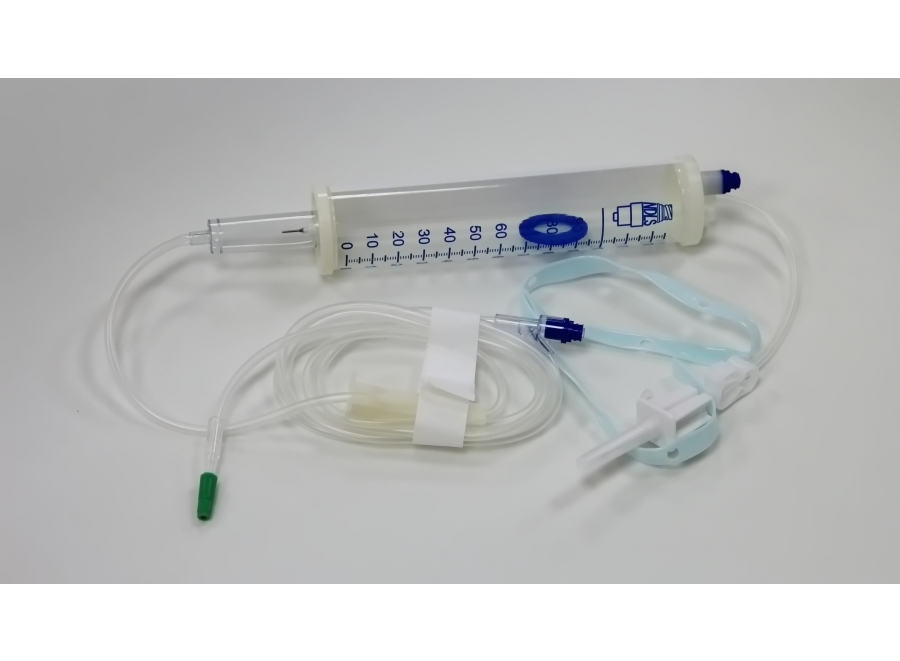

IVB102 - Volume Metric Administration Set- Y-shape/ male luer slip
Spec
1. The infusion sleeve is 210cm ± 10cm in total length, and the infusion tubing is 180cm ± 10cm in length, suitable for connecting various straight or spiral connectors and needles. A Y-type needle-free dosing connector is located 10-20cm from the tubing connection point. The measuring cylinder has a capacity of 120cc and includes a safety valve.
2. The bottle needle and measuring cylinder have a flip-top vent. The infusion tubing is 12cm ± 2cm long and includes a control clip.
3. The drip chamber is transparent and flexible. The micro-needle must be a steel needle, allowing for clear visualization of the drop count and ensuring accurate drop measurement. It has a graduation of 60 drops per 1cc.
4. The filter-type vent has a filter to prevent bacteria and provide aeration. The adjuster has a smooth perimeter, the pusher wheel is easily moved within the track, and the drop measurement is accurate and will not come loose.
5. The needle-free dispensing connector features a flat-mouth silicone design, eliminating the need for a cap and facilitating sterilization by nursing staff.
6. No medication residue remains at the dispensing site, preventing drug crystallization that could clog the dispensing line.
7. Low back pressure must be maintained when administering medication through the needle-free dispensing head to avoid patient discomfort.
8. Each package is individually sterile and clearly labeled with the sterilization date and expiration date.
